No. 12100-0769

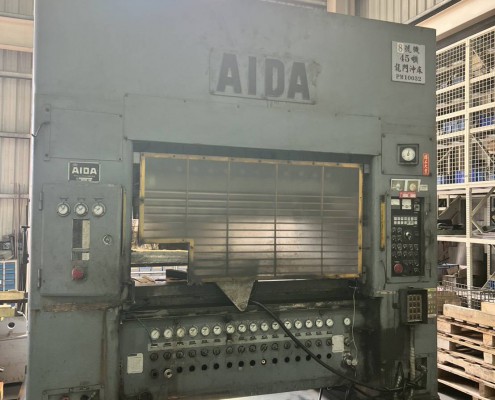

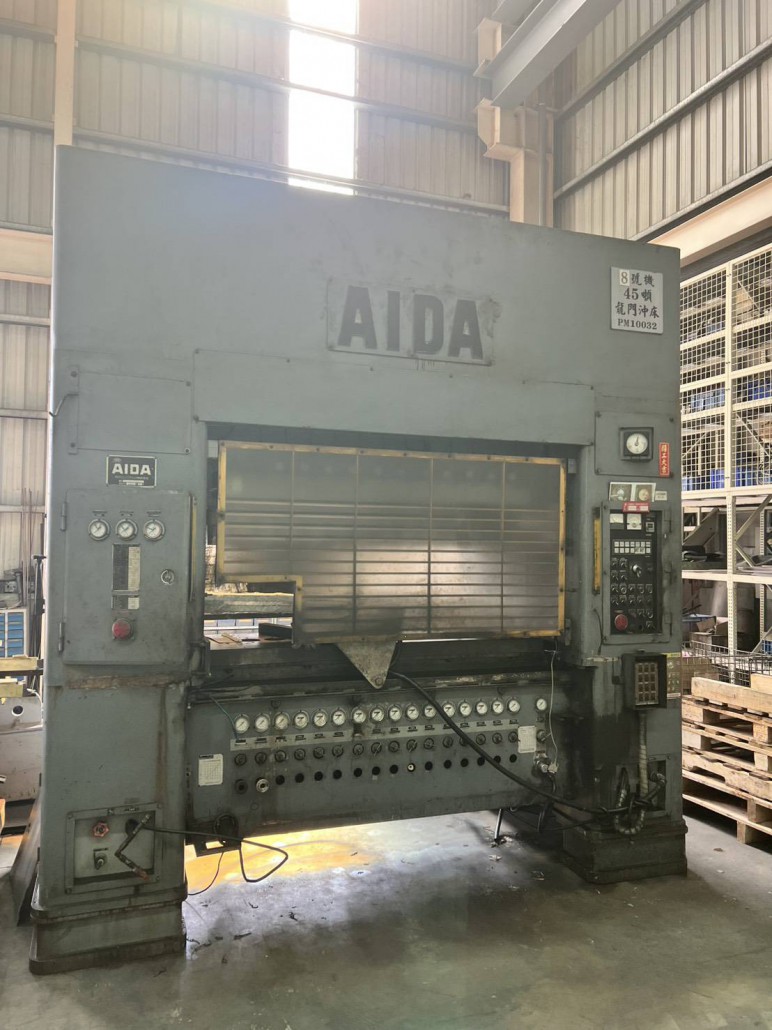

45TON TRANSMAX PRESS
MODEL:FT2-4
&

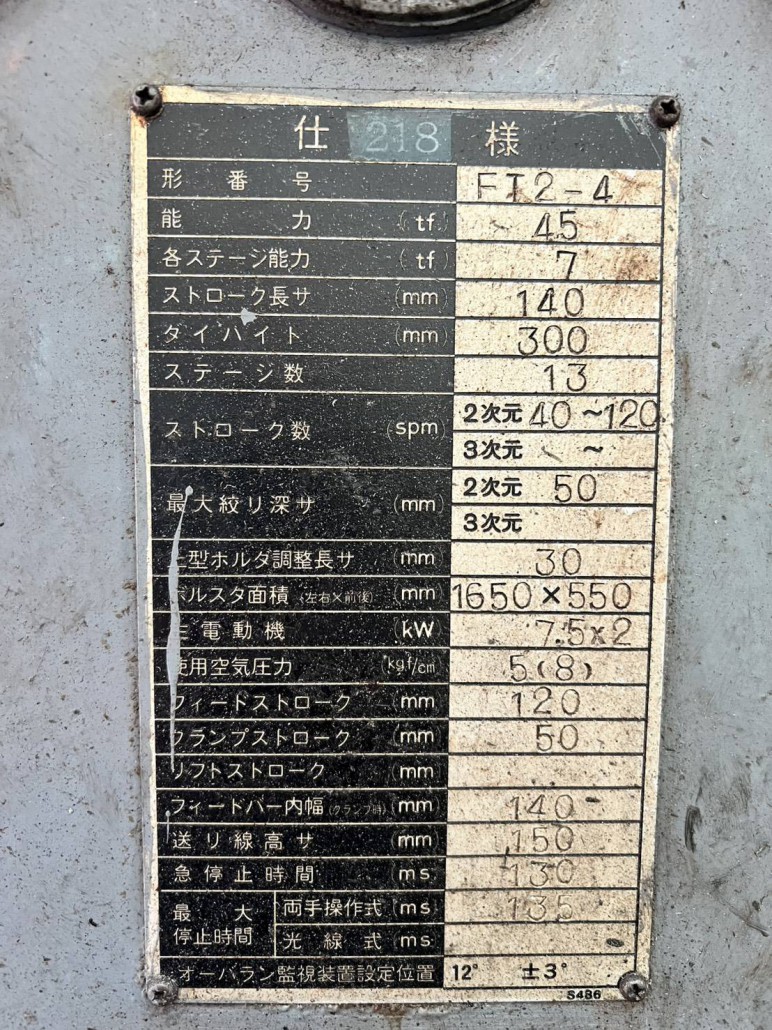

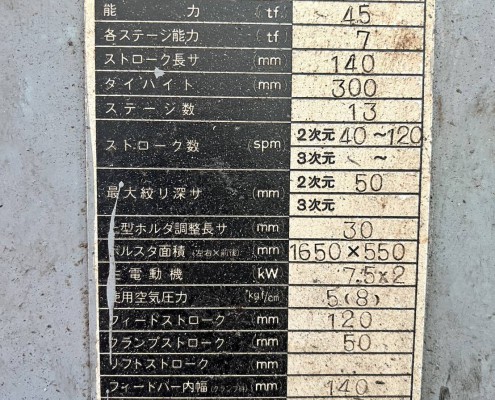

SPEC
Capacity:45Ton (BDC6.5mm)
Stroke length 140mm
SPM:40~120spm
Die height:300mm
Punch holder 30mm
Punch holder area Ø 100
Bolster area:1650x550mm
Bolster Thickness 70mm
Stages 13stage
Max drawing height 50m
Main motor 15kw
Main motor 11kw
Air 5kgf/cm2
&
TRANSFER FEED SPECIFICATIONS:
Feed stroke 120mm
Clamp stroke 50mm
Distance between feed bar (when clamp) 140mm
Pass line height 150mm
Distance between bolster face to feed bar face 200mm
Weight 15Ton
&
※Error except and subject to prior sale
