No. 114-008S

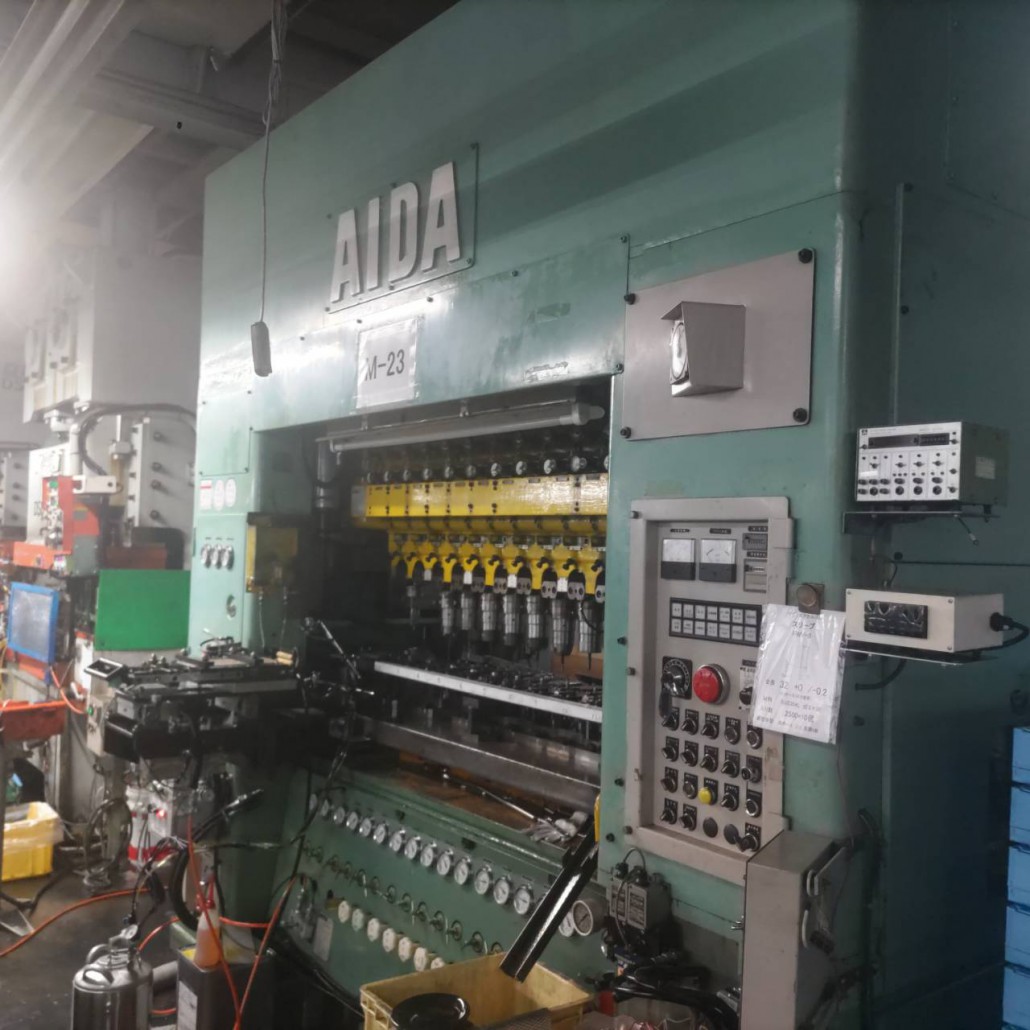

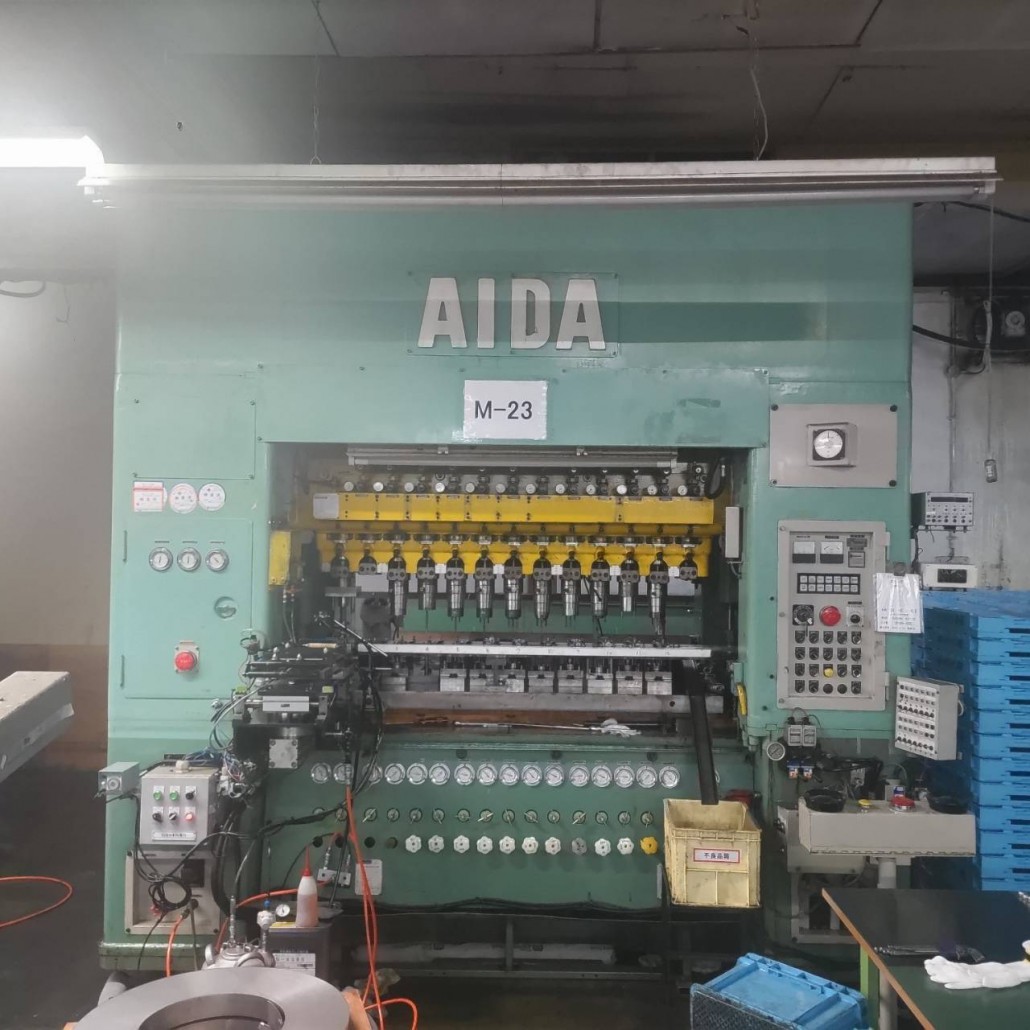

45TON TRANSMAX PRESS
MODEL:TMX-S2-45
&
SPEC
Capacity:45ton
Stroke length 140mm
SPM:40~120spm
Die height:300mm
Punch holder 30mm
Bolster area:1650x550mm
Bolster Thickness 70mm
Stages 13stage
Max drawing height 50m
Main motor 7.5kw X 2
Main motor 11kw
Air 5kgf/cm2 &
TRANSFER FEED SPECIFICATIONS:
Feed stroke 120mm
Clamp stroke 50mm
Distance between feed bar (when clamp) 140mm
Pass line height 120mm
Distance between bolster face to feed bar face 200mm
Weight 15Ton
&
※Error except and subject to prior sale
